三菱_英飛凌_富士IGBT功率器件功耗仿真軟件

1. 三菱MELCOSIM IGBT模塊及IPM模塊等功率器件功耗仿真及選型軟件說明及下載
MELCOSIM是一款三菱IGBT模塊損耗計算及功率器件選型軟件。該軟件可以通過飽和壓降特性和開關特性計算IGBT & FWD上的總功耗，通過總功耗和熱阻計算結溫，最后評價計算出的結溫是否滿足設計需求。本版本繼承以往仿真軟件快速計算，結構化輸入輸出窗口，圖表式功率輸出等優點的前提下新增了溫度紋波曲線計算功能。This software is the power loss simulation for inverter system named "Melcosin".轉載請注明出處 http://www.wwwcb863.com
This document is explained for operation of the Mitsubishi Power Module Loss Simulator "Melcosim" for 2-level inverter and 3-Level inverter.
功耗仿真軟件下載
功耗仿真軟件可以用來計算三菱電機IGBT模塊和IPM在VVVF變頻電路中的功率損耗，該軟件運行環境為Windows2000或以上的操作系統。

兩/三電平功耗仿真軟件

資料名稱	文件類型	文件大小	更新時間	下載
兩/三電平功耗仿真軟件	ZIP	12.3MB	2013-12-30
兩/三電平功耗仿真軟件說明書	PDF	3.01MB	2013-5-17

2 英飛凌IPOSIM7.4IGBT模塊功耗仿真及選型軟件說明及下載

IPOSIM7.4軟件下載及使用說明

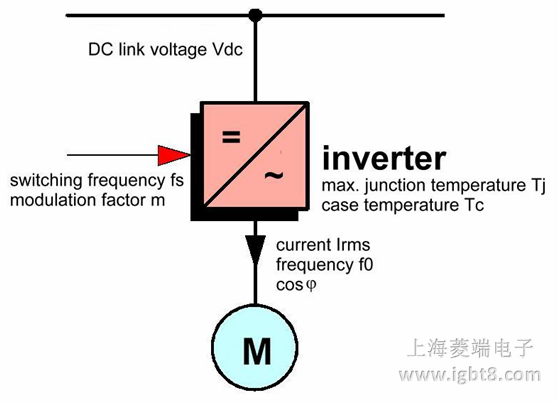

Dimensioning program IPOSIM for loss and thermal calculation ofeupec modules

􀂾 IPOSIM performs an approximate calculation of switching and conduction losses for IGBTs and free-wheeling diodes in a three phase inverter configuration.

􀂾 IPOSIM works under the assumption of a sinusoidal output current and uses linear approximation

􀂾 IPOSIM is a quick selection tool for eupec IGBT modules

Dimensioning program IPOSIM for loss and thermal calculation ofeupec modules

The calculation results in diagrams which are showing an estimation of

􀂾 the average power losses versus the RMS phase leg current at sinusoidal currents

􀂾 the temperature distribution between junction and ambient

􀂾 loss distribution (static and dynamic losses)

􀂾 calculation of complete load cycles

Thermal limits of IGBT and diode part of the module are considered. IPOSIM applies an easy to use, fast and at the same time relatively exact method under sinusoidal output conditions. This fulfils the engineers need for first estimations on losses and thermal limits of the considered IGBT module.

3. 富士IGBT模塊及IPM模塊等功率器件功耗仿真及選型軟件說明及下載

富士IGBT損耗模擬軟件V5.1

轉載請注明出處 http://www.wwwcb863.com
